Create RDS PostgreSQL Database

Initialize the Database with Amazon RDS

ℹ️ Objective

  • Create a managed PostgreSQL database using the Amazon RDS service.
  • Place this database within the created VPC (copia-vpc) network environment and protect it with a Security Group (copia-db-sg).
  • Use the Free Tier to save costs during this hands-on workshop.

🔒 Steps to Follow

1. Access the RDS Service

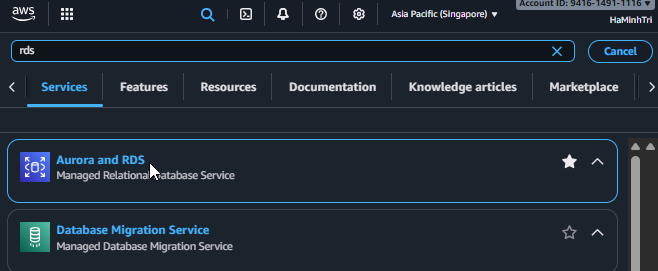

  • From the AWS Management Console interface, search for and select the RDS service.

Search for the RDS service

2. Start Creating the Database

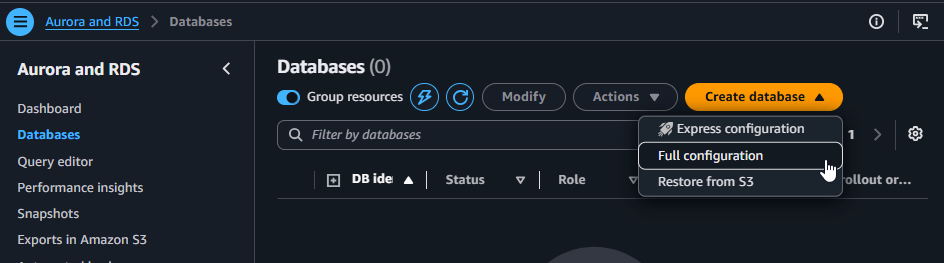

  • In the RDS Dashboard, click the Create database button.

Click Create database

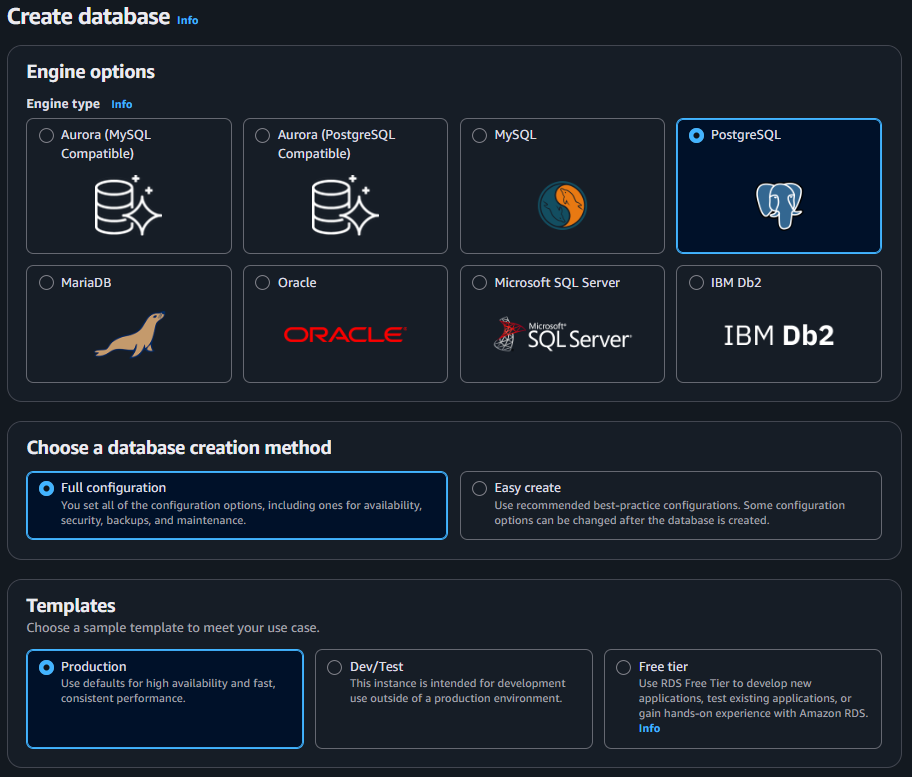

3. Configure Engine and Template

  • Choose a database creation method: Select Standard create.
  • Engine options: Select PostgreSQL.
  • Templates: Select Production.

Choosing Free tier will automatically limit the configuration options (e.g., you can only select a Single DB instance) to ensure you do not incur unexpected costs.

Select Standard create, PostgreSQL, and Free Tier

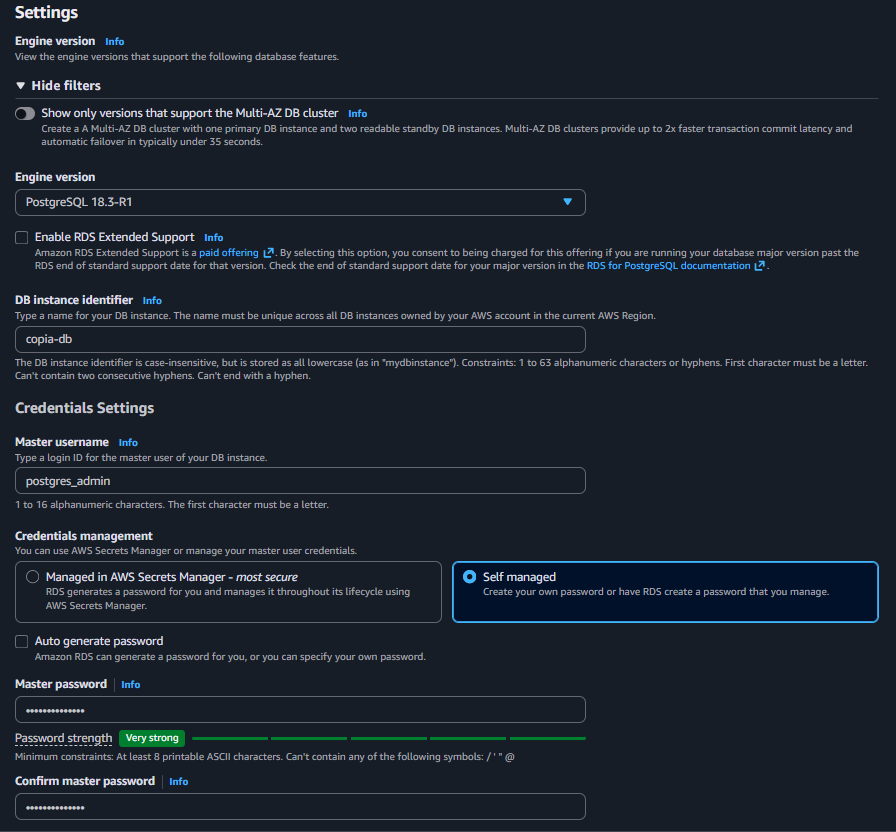

4. Configure Settings

  • DB instance identifier: copia-db
  • Master username: postgres_admin
  • Master password: Enter your password (e.g., 0812-haminhtri).
  • Confirm password: Re-enter your password.

Configure login credentials for the Database

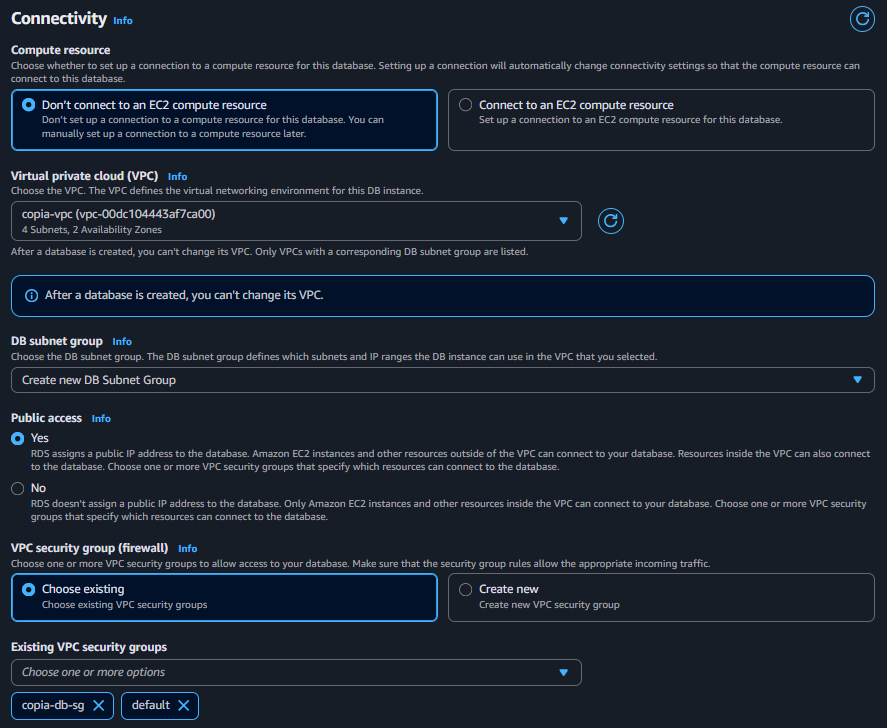

5. Configure Connectivity

This is a crucial step to place the database in the correct network environment.

  • Virtual private cloud (VPC): Select copia-vpc.
  • DB Subnet Group: Leave the default; AWS will automatically create a new Subnet Group suitable for your VPC.
  • Public access: Select Yes.
  • VPC security group (firewall): Select Choose existing.
  • Existing VPC security groups: Keep the default Security Group and select copia-db-sg.

Configure network connectivity for RDS

6. Configure Additional Configuration

  • Expand the Additional configuration section.
  • Initial database name: ors
  • This is the initial schema name that the application will use.

Set the initial schema name

7. Finalize, Create, and Check

  • Scroll to the bottom and click Create database.

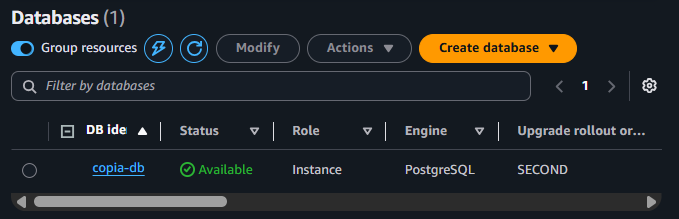

  • The database initialization process can take 5 to 10 minutes. Please wait until the Status column changes to Available.

Wait for the Database to be created

  • Once completed, click on the newly created copia-db instance.

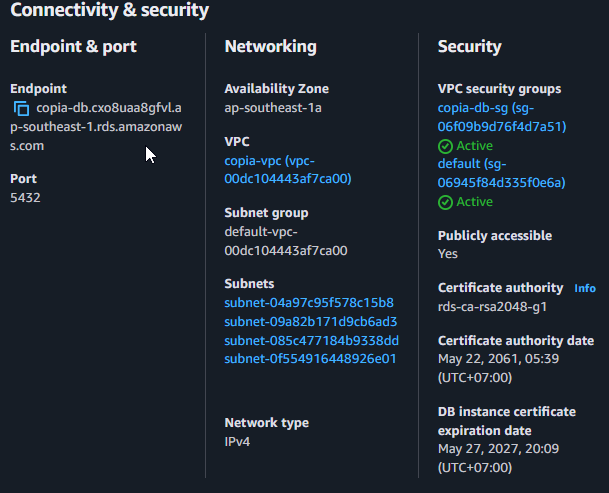

  • In the Connectivity & security tab, find and copy the Endpoint value. This is the address used to connect to your database.

Get the Endpoint information for connection
